ASSA ABLOY 8810 Codehandle Door To Suit Scandinavian Locks


The Assa Abloy Code Handle Door (CHD) is an integrated digital lock for Scandinavian mortice locks, offering simple and effective access control for interior doors. It enhances security for doors in various settings like offices, shops, and meeting rooms. The auto lock mode increases security by ensuring the door is always locked when closed. The lock can store up to 9 user codes and has features like temporary lockout for unauthorized access attempts.

SKU: N/A Category: Product ID: 3083


Digital Coded Handle

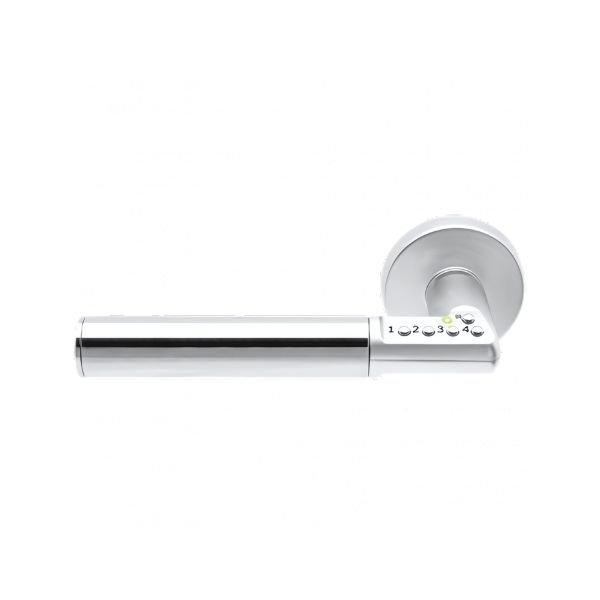

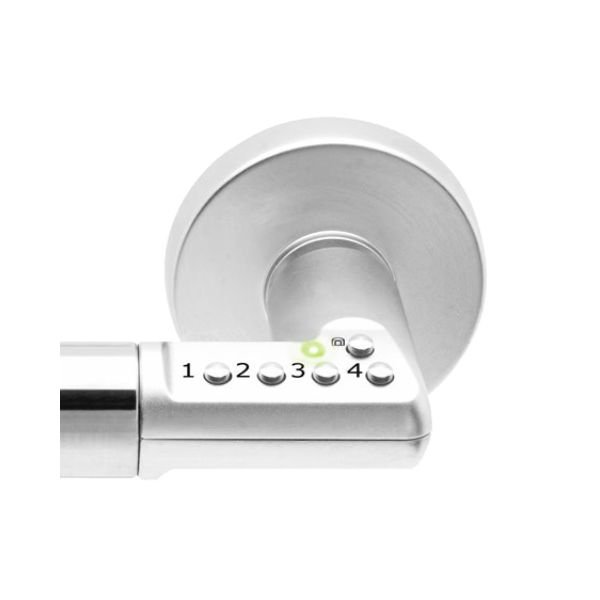

The Assa Abloy Code Handle Door (CHD) is lever furniture with an integrated battery operated digital lock, it is a simple, stylish and effective access control solution for internal doors. This CHD 8810 model is specifically for Scandinavian mortice locks (Scandinavian Modul, Evo and Connect standards). Because there is no need to modify the door, you can easily move the handle if needed.

Code Handle Door is the perfect lock for interior doors that have lower security requirements, typical applications are office doors, doors separating a shop and warehouse or staff space, or meeting and consultation rooms. Such doors are otherwise often left unlocked for convenience, or because a traditional code lock is expensive, requires extensive installation, or is not aesthetically appealing.

The Code Handle Door considerably increases security, if you select the auto lock mode, you know that the door is always locked when closed meaning that you can confidently leave your documents in the office when you go to lunch or conference participants do not have to take their equipment with them during breaks. In retail stores, it is an effective barrier to prevent access to the public to back office and warehouse areas. It also prevents unauthorized access to office storerooms however from the inside the handle is always unlocked.

Each handle can be given up to 9 different user codes and you can easily change the code at any time. For example, cleaning / service personnel can use a shared code for all rooms, while office workers have personal codes. To prevent unauthorised access, the lock is disabled for a few minutes if the incorrect code is entered repeatedly, for maximum security (e.g. overnight), just lock the door using the existing lock cylinder.


Tested for a durability to 100 000 operations, according to EN 1906

The CHD 8810 is to suit locks with Scandinavian Modul, Evo and Connect standards

Choice of automatic or manual locking

Blocking function if a wrong code is entered five times

Master code and up to 9 uses codes

Battery powered so no wiring to the door is required

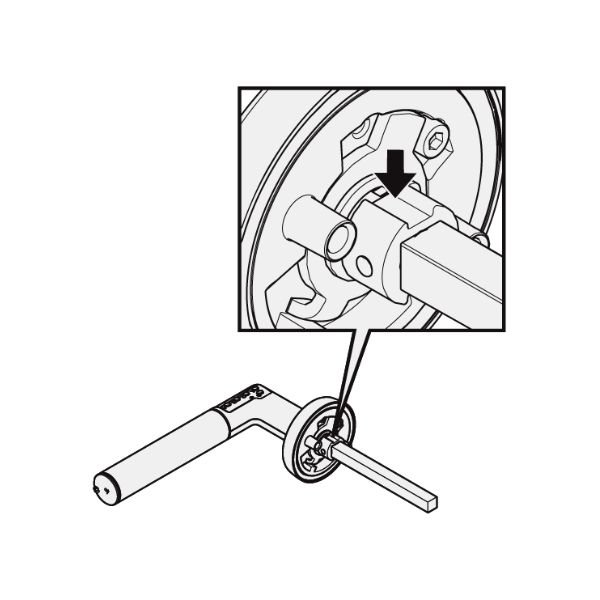

Spindle 8mm
Notes 71mm (Including Rose)
Mechanism Electronic
Passage Set Yes
Packaging Boxed
Pack Quantity 1
Operation Outside On Entry Of Code
Operation Inside Handle Free Exit
Suits Product DIN Standard Mortice Locks
Weather Resistant No
Audit Trail No
Barcode 7332404214879
Battery Life 100,000 Operations
Battery 2 x CR2, 3V Lithium
Code Length 4 To 6 Digits
Case Depth Required 54mm
Brand Assa Abloy
Weight 980g
Latch Not Supplied
Key Override No
Manufacturer Reference CHD-8810-LH
Finish Stainless Steel
Door Thickness 42mm to 80mm

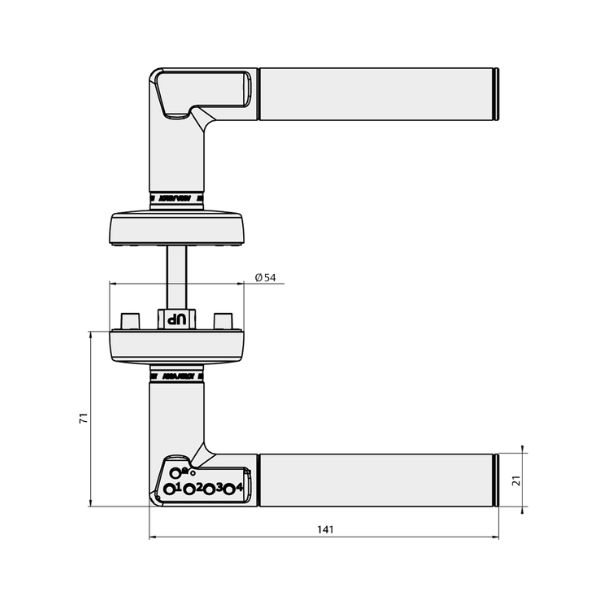

Depth 71mm (Including Rose)
Handle Projection 71mm (Including Rose)
Handle Length 141mm
Handle Diameter 21mm

Additional information

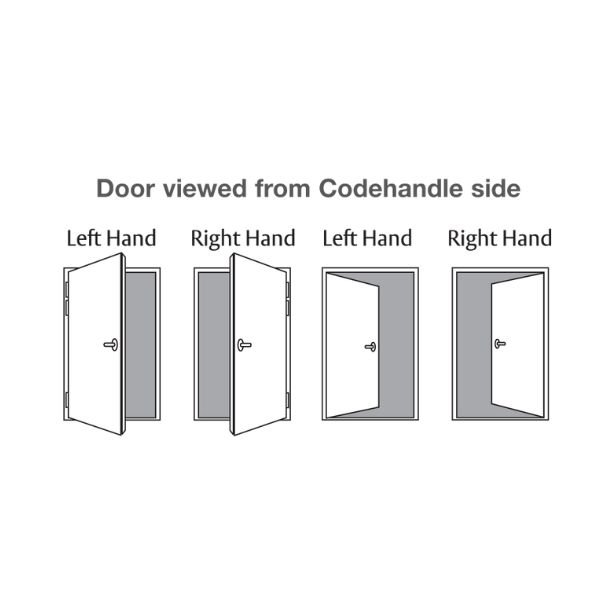

Battery Cover, Left Hand, Right Hand, Spacer

Lock Type

DIN Standard Locks, Scandinavian Locks
